Project Description:
Application:
Anaerobic Digester Biogas
Flow Rate:
700 ppm down to 200 ppm
H2S Treatment:
500 SCFM
Vessels:
Qty. 1; 12’D x 11’H
Completion Date:
Summer 2013
Food Waste-to-Energy Biodigester, Wisconsin
Application:
A digester developer contacted MV Technologies to provide the sulfur removal portion of a large digester project that converts food waste into renewable energy. With a gas flow around 500 cfm, and an inlet concentration of 700 ppm, the facility requires H2S scrubbing to effectively operate the two internal combustion biogas engines.
MV Solution:

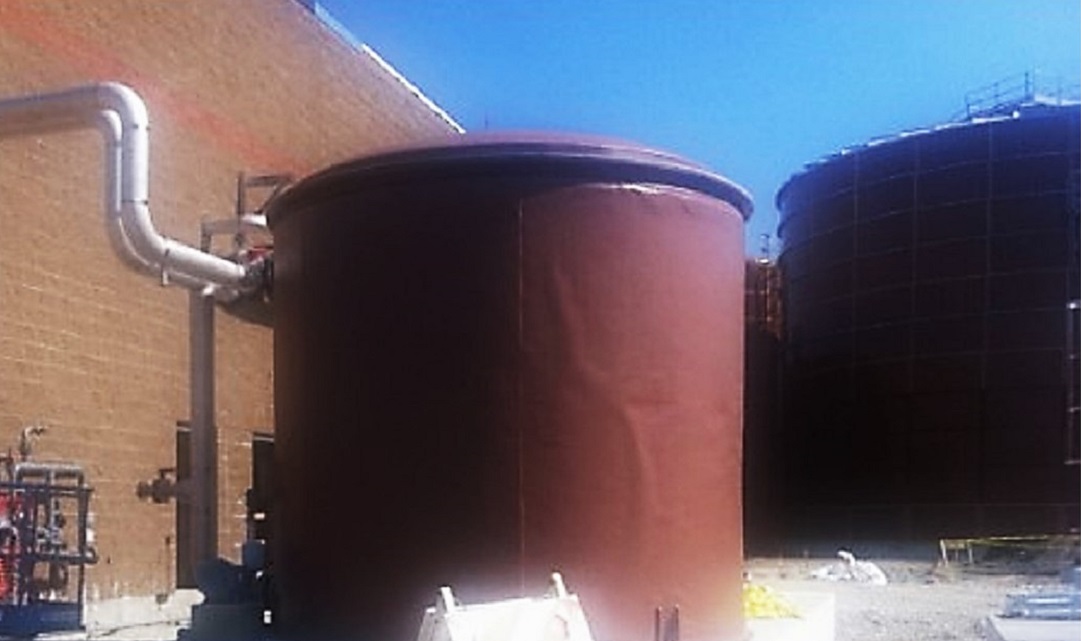

MV Technologies designed a 12’ diameter x 11’ tall single-vessel system with 882 ft3 of iron sponge media. The H2SPlus System reduces the hydrogen sulfide concentration to below 200 ppm for at least 230 days.
